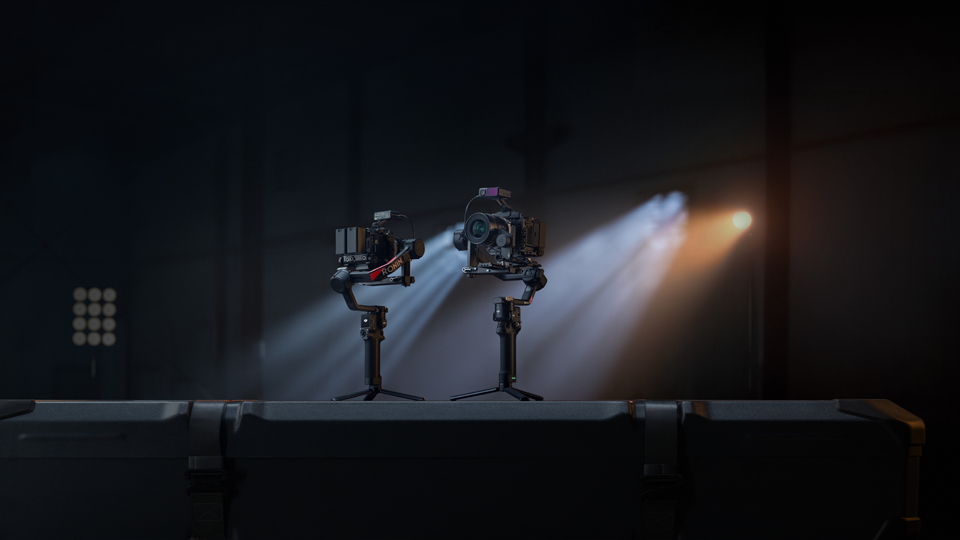

DJI Announces New RS 4 Gimbals and the Focus Pro

Today, DJI announced its most advanced gimbals to date: the RS 4 and RS 4 Pro, you can now pre-order at Amazon/ B&H /Adorama . The new gimbals feature low-friction Teflon coatings on all three axes, ensuring DJI’s smoothest balancing experience to date. When switching cameras and lenses, precise balancing can be achieved using the fine-tuning knob on the tilt axis, which offers millimeter-scale adjustments.

DJI RS 4 costs $549 and RS 4 Pro for $869.

DJI RS 4 Specs

Key Specs

Grip Design	Single Handgrip (Slanted)
Load Capacity	6.6 lb / 3 kg
Number of Axes	3: Pitch (Tilt), Roll, Yaw (Pan)
Wireless Frequency	2.4 GHz
Wireless Protocol	Bluetooth 5.0
Mobile App Compatible	Yes: Android & iOS App Name: Ronin App
Mounting	1 x 1/4″-20 Female 2 x NATO Rail
Weight	2.36 lb / 1.07 kg

Gimbal

Load Capacity	6.6 lb / 3 kg
Number of Axes	3: Pitch (Tilt), Roll, Yaw (Pan)
Rotation Range	Mechanical Range Yaw (Pan): 360° Pitch (Tilt): -112 to 214° Roll: -95 to 240°
Follow Speed	Pan/Tilt/Roll: 360°/s

Compatibility

Camera Control

On Compatible Models

Connectivity

Inputs/Outputs	3x USB-C (Control / Video) 1x USB-C (Power)
Wireless Frequency	2.4 GHz
Wireless Protocol	Bluetooth 5.0
Mobile App Compatible	Yes: Android & iOS App Name: Ronin App

Battery

Battery Type	1x Built-In
Battery Capacity	3000 mAh / 21 Wh
Battery Runtime	12 Hours
Battery Charging Time	2.5 Hours
Battery Chemistry	Lithium-Ion Polymer (LiPo)
Voltage	7.2 VDC

Power

Operating Voltage

7.2 VDC

Environmental

Operating Temperature

-4 to 113°F / -20 to 45°C

General

Display Type	Fixed Touchscreen OLED
Materials	Aluminum Alloy
Mounting	1 x 1/4″-20 Female 2 x NATO Rail
Dimensions	10 x 9.6 x 3″ / 255 x 245 x 75 mm (Folded) 14.6 x 7.5 x 7.4″ / 370 x 191 x 189 mm
Weight	2.36 lb / 1.07 kg

Packaging Info

Package Weight	4.51 lb
Box Dimensions (LxWxH)	12.4 x 9 x 2.9″

DJI RS 4 Pro Specs
